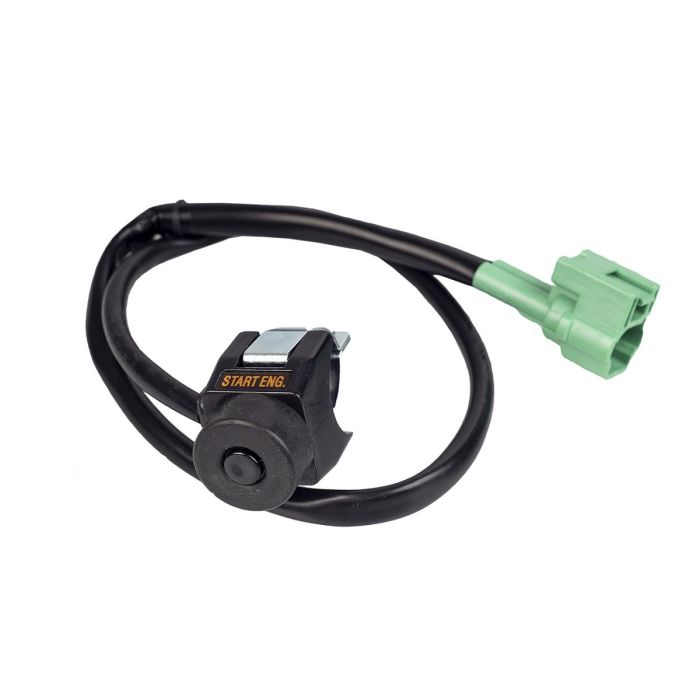

RFX Race Start Button (OEM Replica) Kawasaki KXF450 19-21 KXF250 2021

RFX Race Start Button (OEM Replica) Kawasaki KXF450 19-21 KXF250 2021

RFX Race Series Start buttons are an exact OEM replacement part. Complete with the

same couplings, fasteners, connectors and exact cable lengths as the genuine part.

Available for a wide variety of bikes.

• OEM replacement
• Accepts all original connectors
• OEM cable length

Tag Line

OEM Replica

Fitting Instructions

• Start by removing the front number plate.
• Carefully snip any cable ties holding the start and stop switch cables to the bars then un-screw the clamps and let these hang down.
• Locate the connector for the switch on the bike, these are often close by to the headstock on the chassis but sometimes can be under the tank.
• Unclip the connector and remove the switch taking a note of the routing for the wiring.
• Clean the connector using contact cleaner such as Maxima Electrical Contact cleaner.
• Loosely attach the new switch on to the handlebars in the desired position.
• Route the wires as per the old switch and clip the connector together.
• Check all free pay in the wires by turning the bars to full extension and making sure the wires don’t pull tight, adjust if necessary.
• Re-fit cable ties to the wires if possible positioning the cables to the back of the bars to prevent damage from roost.
• Re-fit your number plate.
