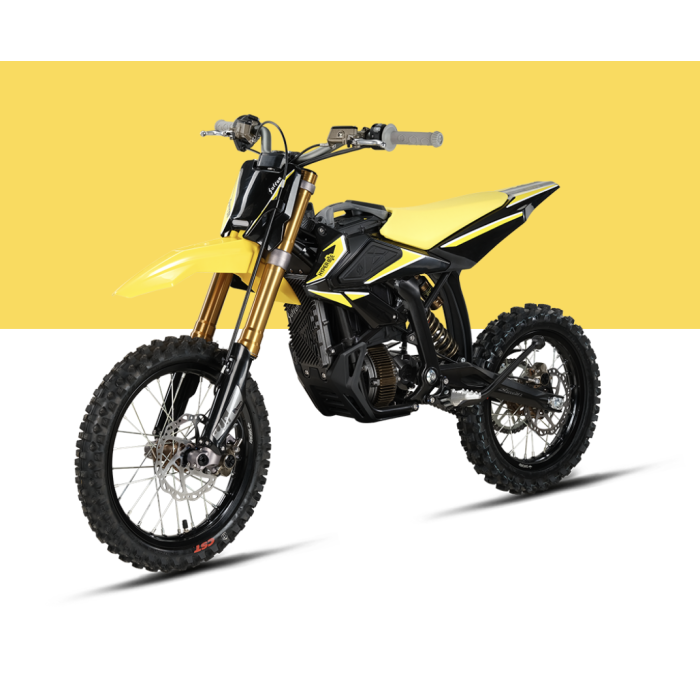

YELLOW SURRON HYPER BEE 12/10

UNCOMPROMISING DESIGN GIVES RISE TO CA NEW BREED OF VEHICLE, ONE THAT'S BOLD BY NATURE AND SHARP BY DESIGN.

After 18 months of relentless development, the Surron R&D design team meticulously refined hundreds of prototypes, perfecting every gram and millimeter, to achieve an incredible weight of just 38kg! "Lightweight excellence in every detail, brilliance in every feature." 10-second battery swaps are a breeze with the innovative coverless battery and 'S-S' lock design. Overflowing with creative inspiration, empowering your limitless riding. The all-new power system, this setup features high-performance 21700 batteries brimming with energy, MTPA/MPV controllers, and an integrated magnetic cylinder longitudinal motor. Coupled with a newly designed angular reducer, it ensures swift and direct power transmission. The system strikes a perfect balance between robust power and refined responsiveness, while being safe, reliable, and easy to maintain.

Specifications

Dimension: 1500mmx680mmx885mm

Seat Height: 685mm (adjustable range 665mm-705mm)

Curb Weight: 39kg

Ground Clearance: 240mm-260mm (Depending on the position adjusted by the shock absorption)

Max. Torque （on wheel): 159N.m

Front suspension system: 35mm inverted dual shoulder – oil spring type – adjustable rebound damping – adjustable compression damping pressure – total length 625mm, stroke 170mm

Rear suspension system: Airbag type adjustable 230mm single rear shock 60mm/ 185mm

Wheel Base: 1035mm

Carrying Capacity: 65kg

Power System

Power System: PMSM, MTPA/MTPV Controller

Maximum Power(Motor): 5kw

Riding Mode: 1/2/3/Reverse R

Assistance Functions: Sliding energy recovery with three-level adjustable levels

Battery Type: 50.4V/25AH Lithium-ion Battery pack

Throttle Curve: Three-stage Adjustable

Primary Belt System: Primary gear drive + second chain drive

Charging Parameter: Portable charger-magnetic charging-fully sealed

Performance

Top Speed: 55km/h

WMTC road: 50km@40km/h

Charge Time（20%-80%): 2.5h

Frame&Tire

Tires Type:

Front-60/100-14 Off-Road
Rear-70/100-12 Off-Road

Frame Material: Forged aluminium alloy

Assistant Functions

Remote control function: Intercom function｜Power mode setting

Safety function: Magnetic emergency switch｜Remote emergency power off function

Tilt Protection: Gyroscope sensor(Can be turned off in feature setting mode)
